1. Scale size :127mm*106mm* 19mm (L x W x H)
2. Super brushed stainless steel pan :100mm*100mm (L x W)
3. Blue backlight, large screen display: 42mm*14mm (L x W)
4. Comes with PCS single count function 25,50,60,75,100
5.6 File unit conversion G, OZ, OZT, DWT, ct,gn
6. Use 2 * AAA 7 battery
7. Boot self-test function, automatic zero tracking
8.30-60 seconds automatic shutdown function
9. Zero setting, full scale zero clearing function

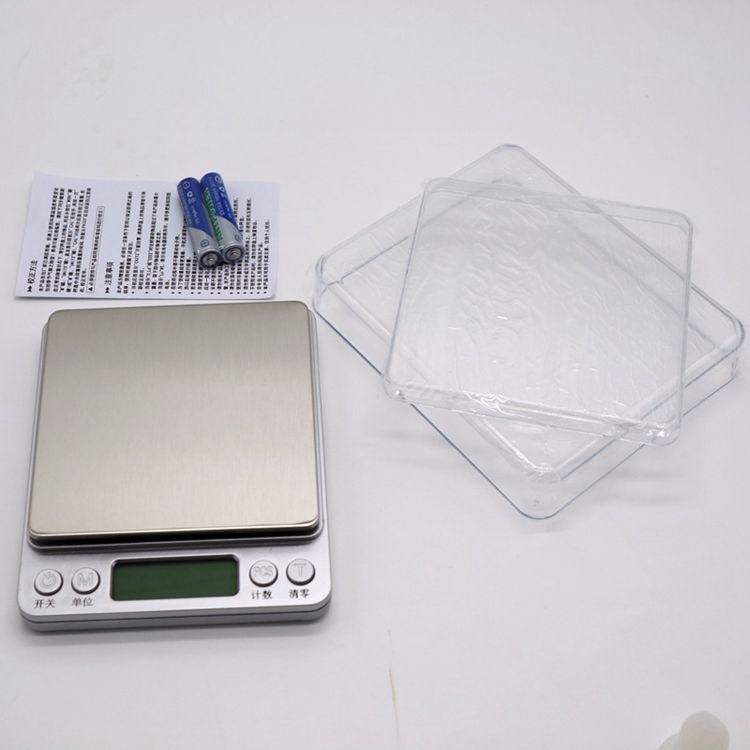

10. The product has two colors, silver and black, and two transparent protective covers, which can be used as trays
11. This product is equipped with four kinds of range, 0.01 g, 500 g / 1000 g / 0.1 g, 0.1 g, 2000 g / 3000 g / 0.1
12. Product packaging and quantity: plastic bag + blister + color box + carton, 10Pcs/ inner box,50PCS/ outer box, single weight 275g
Packing size: 720*355*185mm
Gross weight: 15 KG
Net weight :14.2KG
Function instructions:
Operate only on stable, non-vibrating surfaces
[Baby specification] : large measuring range 3kg, accuracy 0.1g with two transparent trays, one big and one small
【 Instruction 】 :
How to use the counting function of the scale:
1, you first put the items on the scale, there are four choices: 25, 50, 75, 100.
For example, you first put 25 coins of the same size on the scale
2, then press and hold the pcs key for 2 seconds until the number 100 is displayed
3, then press the MODE key once and it will appear 25, 50 twice, 75 three times, 100 four times, but we started with 25 coins, just press it
4, then click the pcs key
This completes the setup process. You can grab any handful of coins and the numbers will show up.
Trouble shooting
The main reasons for inaccurate weighing, failure, etc., are generally too low power, incorrect calibration, overload or not operating on a stable surface.
[DISPLAY] Indicates that the error is removed
OUT2 indicates re-calibration
[EEEE] indicates overweight and should immediately remove some of the overweight items.
[UN2T] means to weigh the scale on a more stable platform
Shipment will also be tested and proofread, buyers after receiving the goods do not proofread! Can be used directly! If you have any questions, please feel free to contact customer service!
Accessories: 2 batteries
Operation instruction
Place the scale on a smooth surface
1. Press N. Wait 5 seconds until 0.0 is displayed.
2. Place the weight on the tray surface, that is, the weight of the weight;
3. Use the M key to change the measurement unit, G/OZ/GN/CT/DWT/OZT
4. Press TARE to force zero.
Correction method
Press the M key for 3 seconds, the display displays CAL to let go, and then press the M key to display 100 grams, at this time, place 100 grams of weight on the tray, and display PASS after 3 seconds, calibration is complete. (Due to excessive temperature difference or other reasons, please use this function)
Matters needing attention
1. Take the pallet protection cover lightly, and use it in a stable, vibration-free and wind-free environment
2. Do not place any object larger than the rated weight on the tray, which may damage the sensor, do not impact the weighing tray when placing the object, and be careful to put it gently, (this is the general pocket scale needs attention, the machine is equipped with pressure protection Settings, can withstand 3000g pressure will not be damaged).
3. When the battery symbol is displayed on the display, replace the battery immediately.
